1715 - 1785 / 1805 - 1880 Mhz Rf Duplexer Rf Low Pim N - Female Indoor Used

Product Categories
Chengdu SinoScite Technology Co., Ltd.
Contact Now

1715 - 1785 / 1805 - 1880 Mhz Rf Duplexer Rf Low Pim N - Female Indoor Used

  • 1
  • 2

Brand Name : Sinoscite

Model Number : SNSD

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : Less than 4weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Frequency : 700 - 2700MHz

Insertion Loss : <3.4dB

Isolation : >25dB

VSWR : <1.2

PIM (IMD3) : ≤-160dBc @+43dBm*2

Power Rating : 100W / Input port

Contact Now

1715 - 1785 / 1805 - 1880 MHz RF Cavity Duplexer RF Low PIM N-Female Duplexer

Quick Details
  1. Frequency:700 - 2700MHz
  2. Insertion Loss:<3.4dB
  3. Isolation:>25dB
  4. VSWR:<1.2
  5. PIM (IMD3):≤-160dBc @+43dBm*2
  6. Power Rating:100W / Input port
  7. Color:Silver
  8. Impedance:50Ω
  9. Environmental rating: Indoor
  10. Temperature:0 to +55℃
Supply Ability
Supply Ability:100 Unit/Units per Day
Packaging & Delivery
Packaging Details: Standard exporting cartons or as customer required
Port: Chengdu
Introduce


Features

  1. Wide Frequency Range
  2. Excellent Coupling Flatness
  3. High Directivity / Isolation
  4. Cavity structure, High power handing
  5. Low Insertion Loss, Low VSWR, Low PIM(IM3)
Specification
Frequency Range
700 - 2700MHz
Insertion Loss
<3.4dB
VSWR
<1.2
PIM (IM3)
<-155dBc @ +43dBm×2
Isolation
>25dB
Power Rating
100W / Input port
Temperature Range
0 to +55℃
Environmental Humidity
0 to 95%
Environmental rating
Indoor
Connectors
DIN-Female
Material
Cavity: Aluminum silver-plated; Connector: Copper
Mounting
Brackets
Size
200×150×120mm

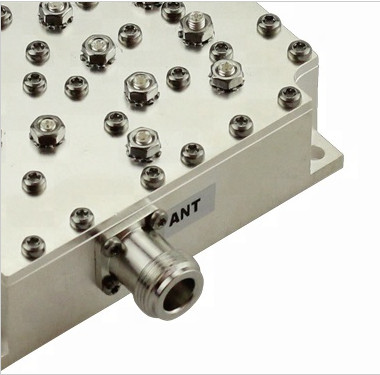

Product Show
1715 - 1785 / 1805 - 1880 Mhz Rf Duplexer Rf Low Pim N - Female Indoor Used
