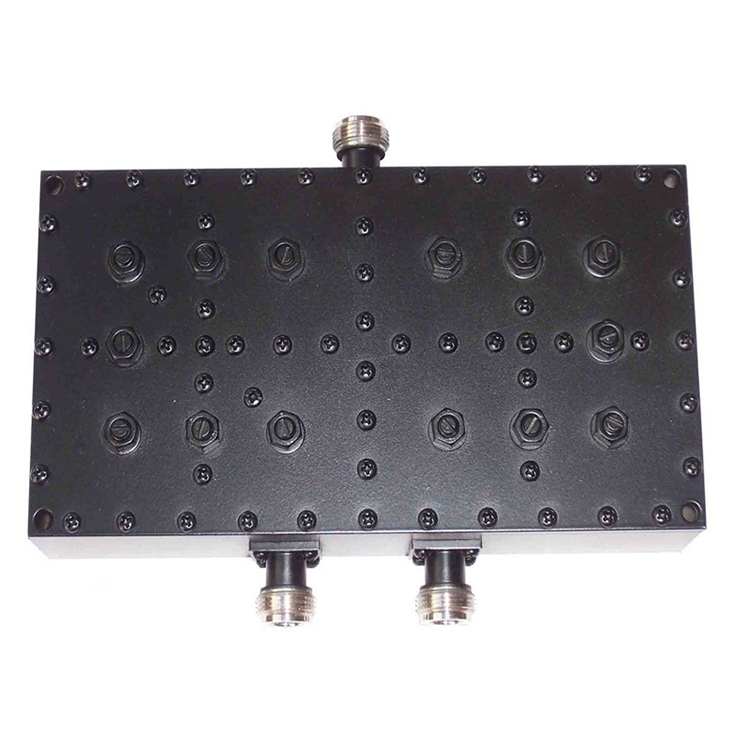

Black Cdma Dcs Gsm Wcdma Rf Duplexer Passive Components 5w Power Rating

Product Categories
Chengdu SinoScite Technology Co., Ltd.
Contact Now

Black Cdma Dcs Gsm Wcdma Rf Duplexer Passive Components 5w Power Rating

  • 1
  • 2

Brand Name : Sinoscite

Model Number : SNSD

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : Less than 4weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Power Rating : 5W

Impedance : 50Ω

Insertion Loss : 3dB

Isolatio : ≥90dB

Weight : 120g

Connector Type : N-KF,50Ω

Contact Now

Passive Components Available CDMA DCS GSM WCDMA Duplexer RF Cavity Duplexer

Quick Details
  1. Place of Origin:Sichuan, China
  2. Brand Name:rf cavity Duplexer
  3. Model Number:rf cavity Duplexer
  4. Product name:Available CDMA DCS GSM WCDMA Duplexer rf cavity wireless Duplexer
  5. Power Rating:5W
  6. Insertion Loss:3dB
  7. Impedance:50Ω
  8. Connectors:N-KF,50Ω
  9. Material:RoHS ,Ceramic Packaging
  10. Weight:120g
  11. Dimensions:30*12.8*5.5mm
  12. Operating Temperature:-20~+60℃
Supply Ability
Supply Ability:2000 Piece/Pieces per Month CDMA DCS GSM WCDMA Duplexer rf cavity wireless Duplexer
Packaging Details: rf cavity Duplexer

Product Description

Black Cdma Dcs Gsm Wcdma Rf Duplexer Passive Components 5w Power Rating

Features

  1.  Power Rating: 5W
  2.  Insertion Loss: 1.8dB
  3.  Impedance: 50Ω

Electrical Characterist

Parameter Symbol Conditions Value Units
      Min Typ Max
Frequency Range f     827.5   MHz
Impedance Z       50 Ω
Insertion Loss IL Pin=0dBm, TA=+25℃     3.0 dB
Standing Wave Ratio VSWR Pin=0dBm, TA=+25℃   1.3   :1
Isolation L         dB
Undulation       1.5   dB
Restrain   820-835MHz   45   dB
Through Power (CW) Pin       5 W
Operating Temperature T   -20   +60 ℃

Environmental Characteristics

Name Standard Remarks
Temperature Testing GB/T √
Vibration Testing GB/T √
Degradation Testing GB/T

√
