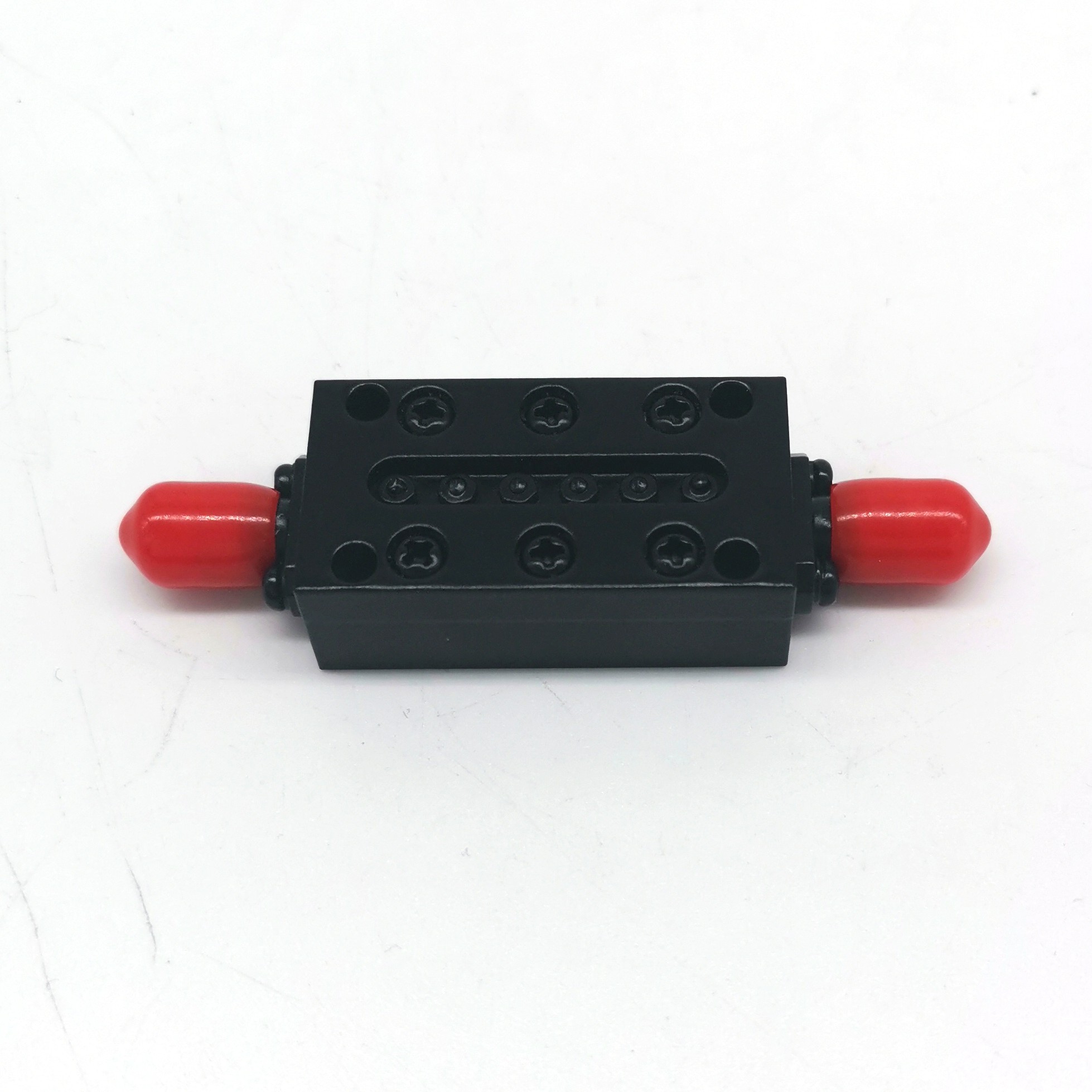

11.45-12.75GHz Bandpass RF Cavity Filter N Connector

  • 1
  • 2
  • 3

Brand Name : Sinoscite

Model Number : SNSD-1794

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : Less than 4weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Center Freq. : f0=12100MHz

1dB bandwidth : ≥1300MHz

Insertion loss : ≤1.2dB@f0±650MHz

Band-out Rejection : ≤1.5

VSWR : ≤1.2dB@f0±650MHz

Material : Aluminum material, silver-plating

Contact Now

11.45-12.75GHz N Connector Bandpass Cavity Filter

Product Details

1Center Freq. f0=12100MHz
21dB bandwidth≥1300MHz
3Insertion loss≤1.2dB@f0±650MHz
4Band-out Rejection

≥60dB@5250-6550MHz

≥40dB@13750-14500MHz

5VSWR≤1.5
  • Part Number :SNSD-1794
  • Manufacturer :Sinoscite
  • Description: RF Microwave Filters Cavity Bandpass Filter

General Parameters

Operating frequency (GHz)Insertion loss (dB)VSWRSuppression point f1(GHz)Suppression point f2(GHz)ConnectorSize (mm)
0.585-0.6150.520.45(60dB)0.75(60dB)SMA-K113*50*20
0.71-0.732.51.30.695(45dB)0.735(50dB)SMA-K108*65*35
0.8-1.652.20.75(40dB)1.65(50dB)SMA-K104*51*30
1.2-1.40.31.350.8(50dB)2-6(50dB)N-K88*64*40
1.95-2.0521.51.9(40dB)2.1(40dB)SMA-K41*84*23
2.2-2.8122(30dB)3(30dB)SMA-K90*35*20
2.4-3.611.52(30dB)4(30dB)SMA-K48*24*10
4-611.53.4(40dB)7-15(40dB)SMA-K45*22*9
8.15-8.2531.58.1(40dB)8.3(40dB)SMA-K40*32*16
8-1211.87(45dB)13-20(30dB)SMA-K140*20*20
12.7-13.31.51.512.3(40dB)13.7(40dB)SMA-K68*17*11
12-1811.28.2(50dB)20.8(50dB)SMA-K68*17*11
18-26.511.55-12(60dB)36-40(60dB)2.92-K39*18*13
27.5-311.5226.8(40dB)31.9(60dB)2.92-K78*16*12
33-4011.530(85dB)43(85dB)2.92-K49*14*11
43.5-45.53242.8(50dB)46.2(50dB)2.4-K50*13*13
58-6211.555(35dB)65(35dB)1.85-K40*10*10
