Moderate Volume 30.5GHz Waveguide Antenna

Name: Moderate Volume 305GHz Waveguide Antenna
Brand: Sinoscite
Price: 1 USD

Buy cheap Moderate Volume 30.5GHz Waveguide Antenna product

Brand Name : Sinoscite

Model Number : SNSD-AN260

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : Less than 4weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Operating Frequency : 30.5GHz

VSWR : <1.3

Gain : 10±0.5dB

Material : Copper

Surface treatment : Gold-plated

Contact Now

Moderate Volume Light Weight High Gain Waveguide Horn Antenna

Product overview

The main features are moderate volume, light weight, easy to use and high gain.

Auxiliary antenna transmission, receiving antenna for radio wave detection, transmitting or receiving antenna for jammers and other electronic equipment, etc. commonly used in portable antenna measurement.

The advantages of horn antennas include a low voltage standing wave ratio (VSWR), a very wide working bandwidth (10:1 or even 20:1), and a concentrated transmission directivity. At the same time, because the structure of this type of antenna is relatively simple, the manufacturing cost is relatively low. In terms of application, because the gain and standing wave ratio curve of the horn antenna is very flat in the bandwidth range, it is very suitable for testing the performance of other antennas.

Our Products Features

1.Good temperature behavior, High aseismatic capability.

2.Low Insertion Loss, High power handling.

3.High quality, Low price, Fast delivery.

4.Custom design available upon request.

5.Meet ROHS standard.

6.Guaranteed for one year standard

Model&Specification

Waveguide Standard	Frequency Range(GHz)	Gain(dBi)	Flange Type	VSWR
WR28	26.5-40.0	24.7	B Type	1.5
WR34	21.7-33.0	24.7	B Type	1.5
WR42	17.6-26.7	24.7	B Type	1.5
WR51	14.5-22.0	24.7	B Type	1.5
WR62	11.9-18.0	22.1	B Type	1.5
WR75	9.84-15.0	22.1	B Type	1.5
WR90	8.20-12.40	22.1	B Type	1.5
WR112	6.57-9.99	20	B Type	1.5
WR137	5.38-8.17	20	D Type	1.5
WR159	4.64-7.05	20	D Type	1.5
WR187	3.94-5.99	18	D Type	1.5
WR229	3.22-4.90	18	D Type	1.5
WR284	2.60-3.95	18	D Type	1.5
WR340	2.17-3.30	15.5	D Type	1.5

Moderate Volume 30.5GHz Waveguide Antenna

Product Tags:

24.7 db Waveguide Antenna

WR28 Waveguide Antenna

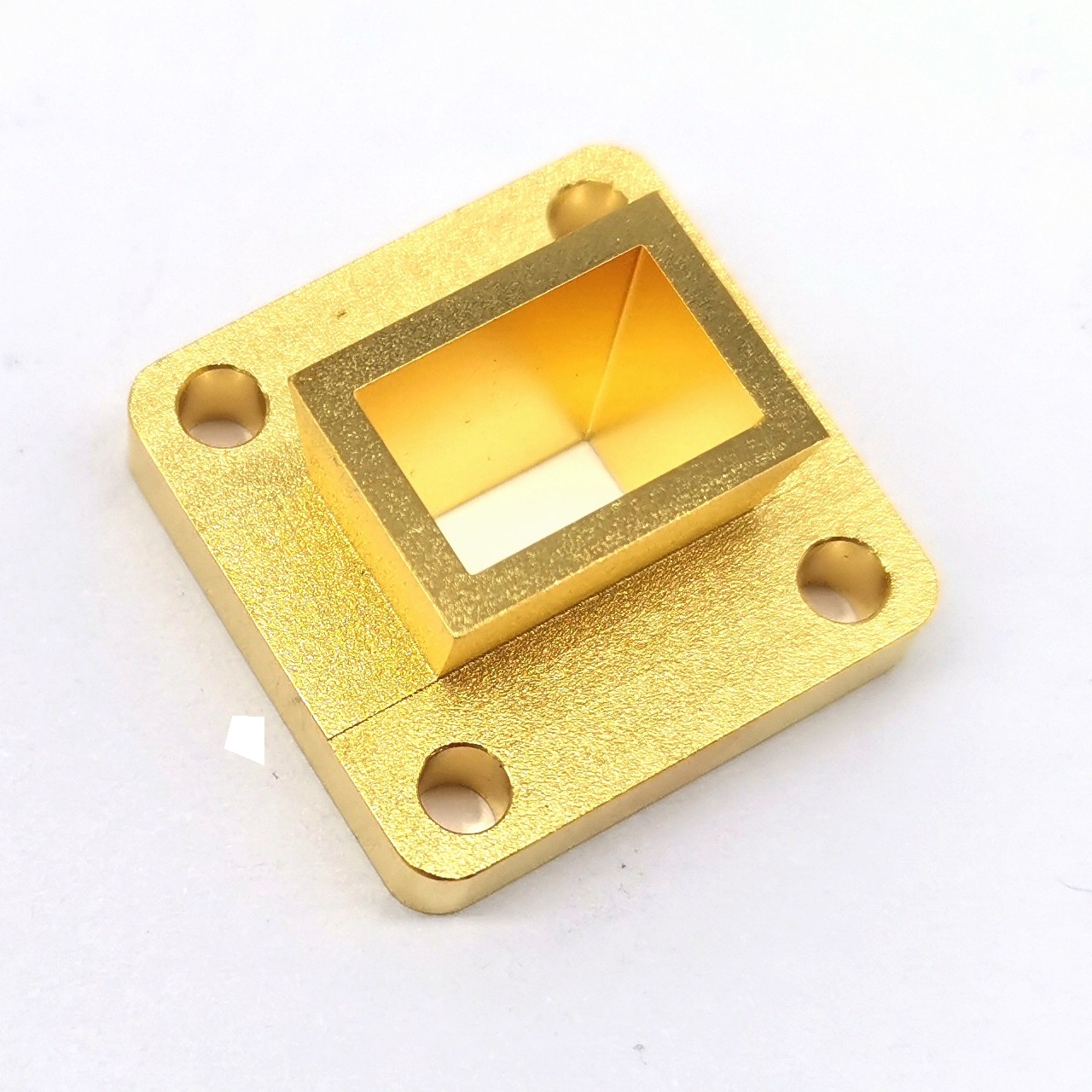

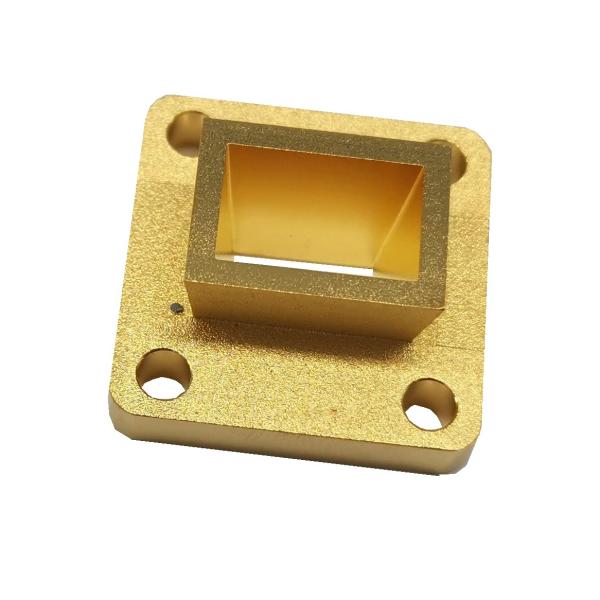

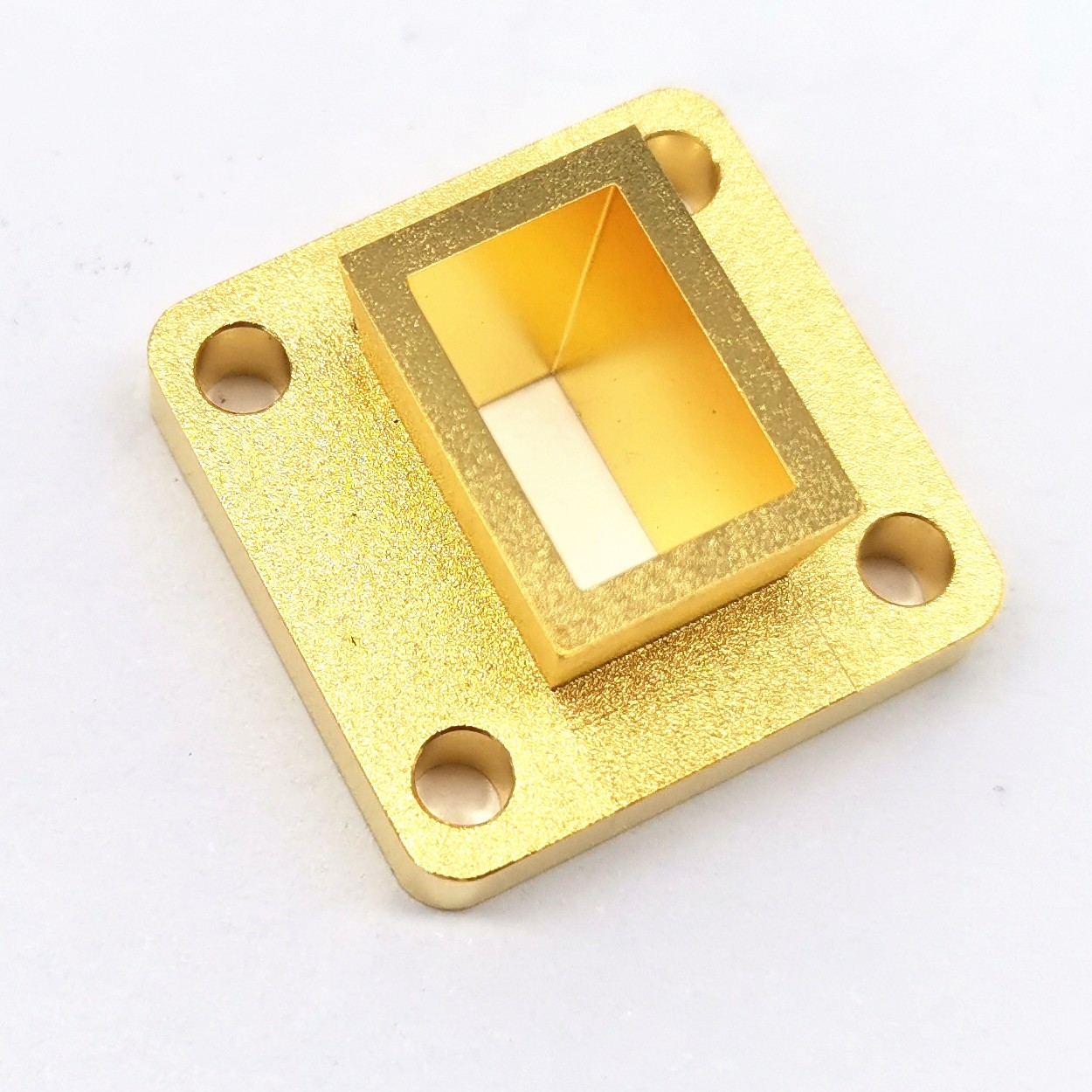

Moderate Volume 30.5GHz Waveguide Antenna Images
