13.75 - 14.5ghz Cavity Waveguide Directional Coupler 13.75-14.5ghz 250w

Product Categories

Chengdu SinoScite Technology Co., Ltd.

Contact Now

Name: 1375 145ghz Cavity Waveguide Directional Coupler 1375145ghz 250w
Brand: Sinoscite
Price: 1 USD

Brand Name : Sinoscite

Model Number : SNSD

Certification : ISO 9001:2015

Place of Origin : Sichuan, China

MOQ : 1 Piece

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000 Piece per month

Delivery Time : Less than 4weeks

Packaging Details : Standard exporting carton , each product individually wrapped, high density foam protection professional packing.

Operation frequency : 13.75-14.5GHz

Coupling : 40dB

Directivity : ≥15dB

VSWR (main line) : ≤1.1

VSWR (sub line) : ≤1.25

Average Power : 250W

Contact Now

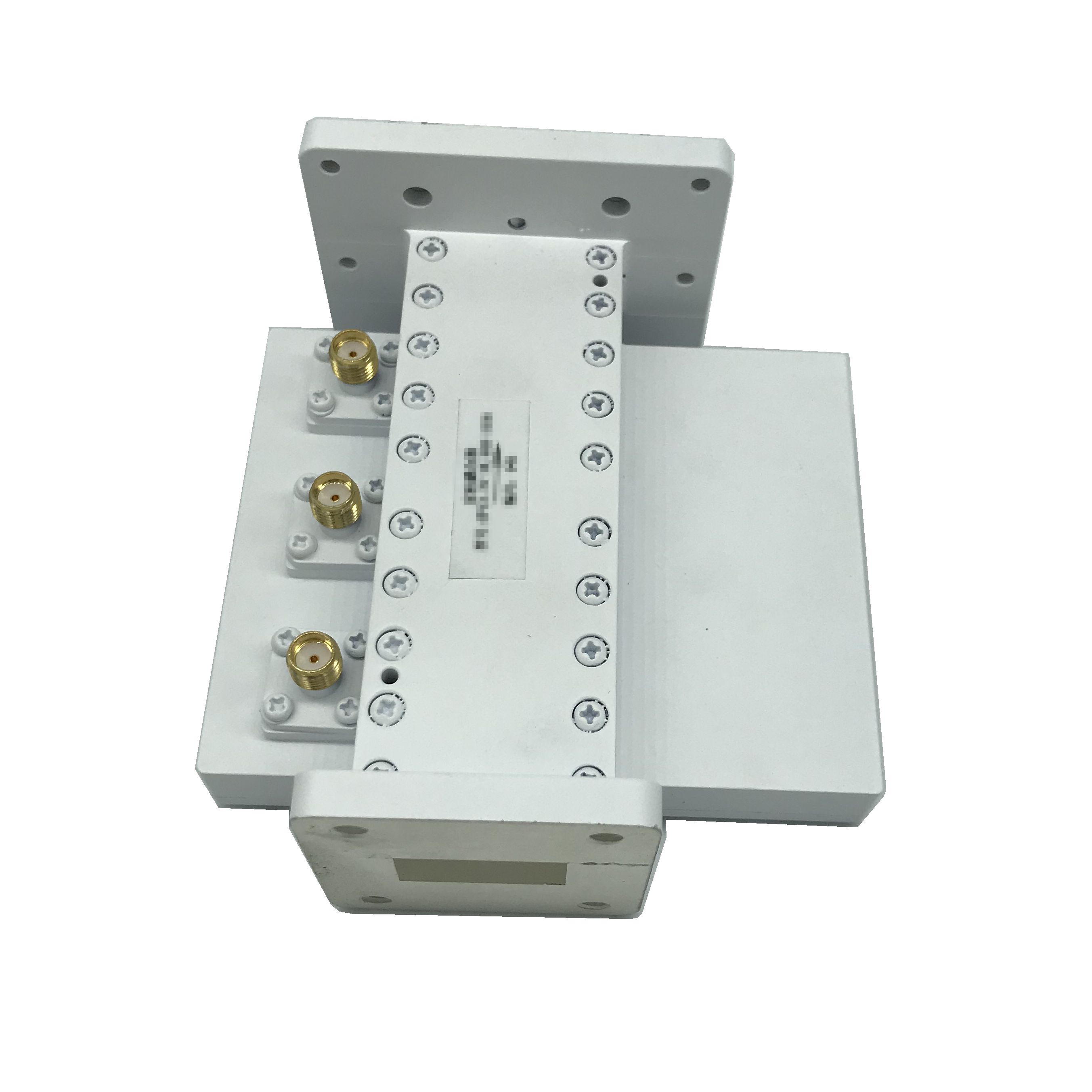

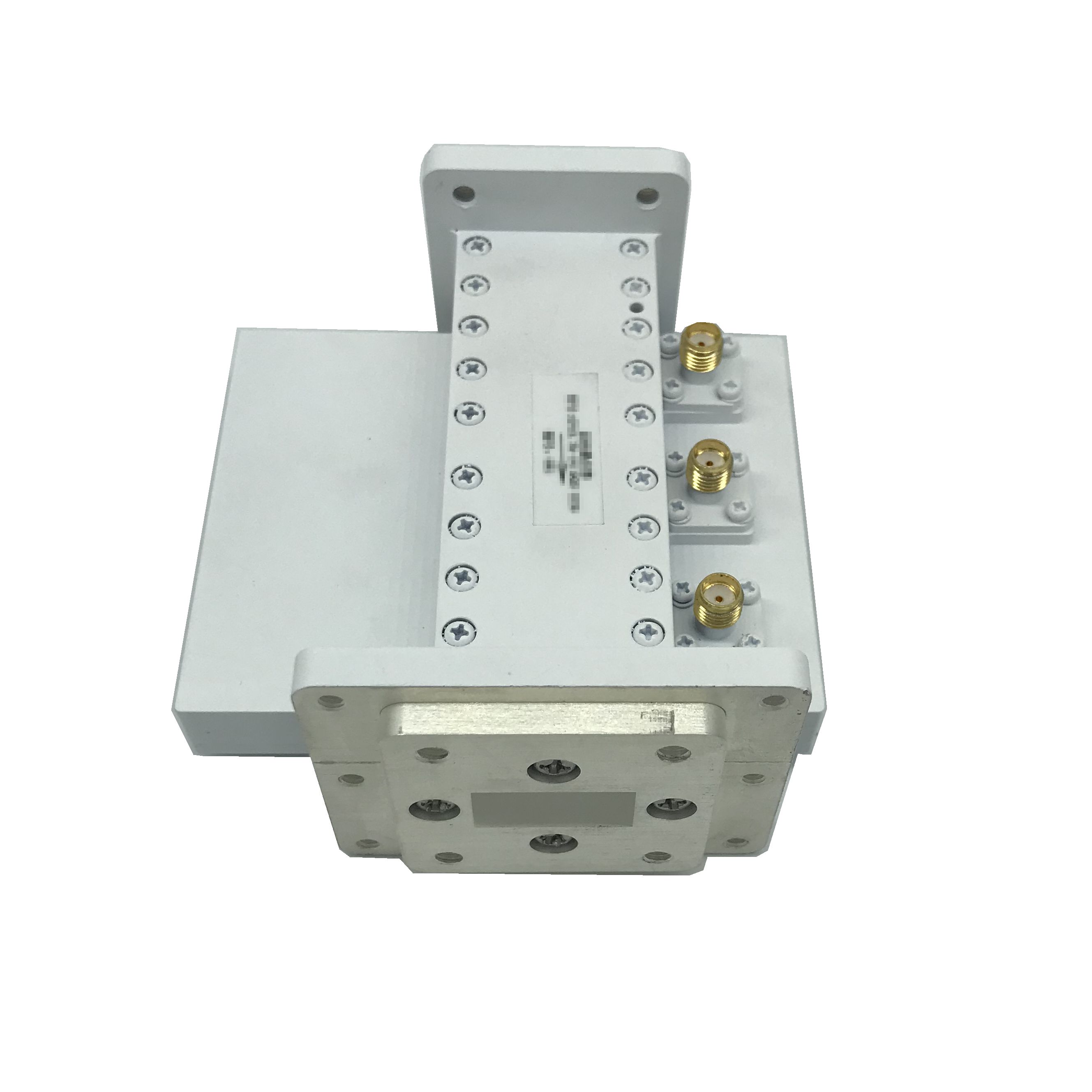

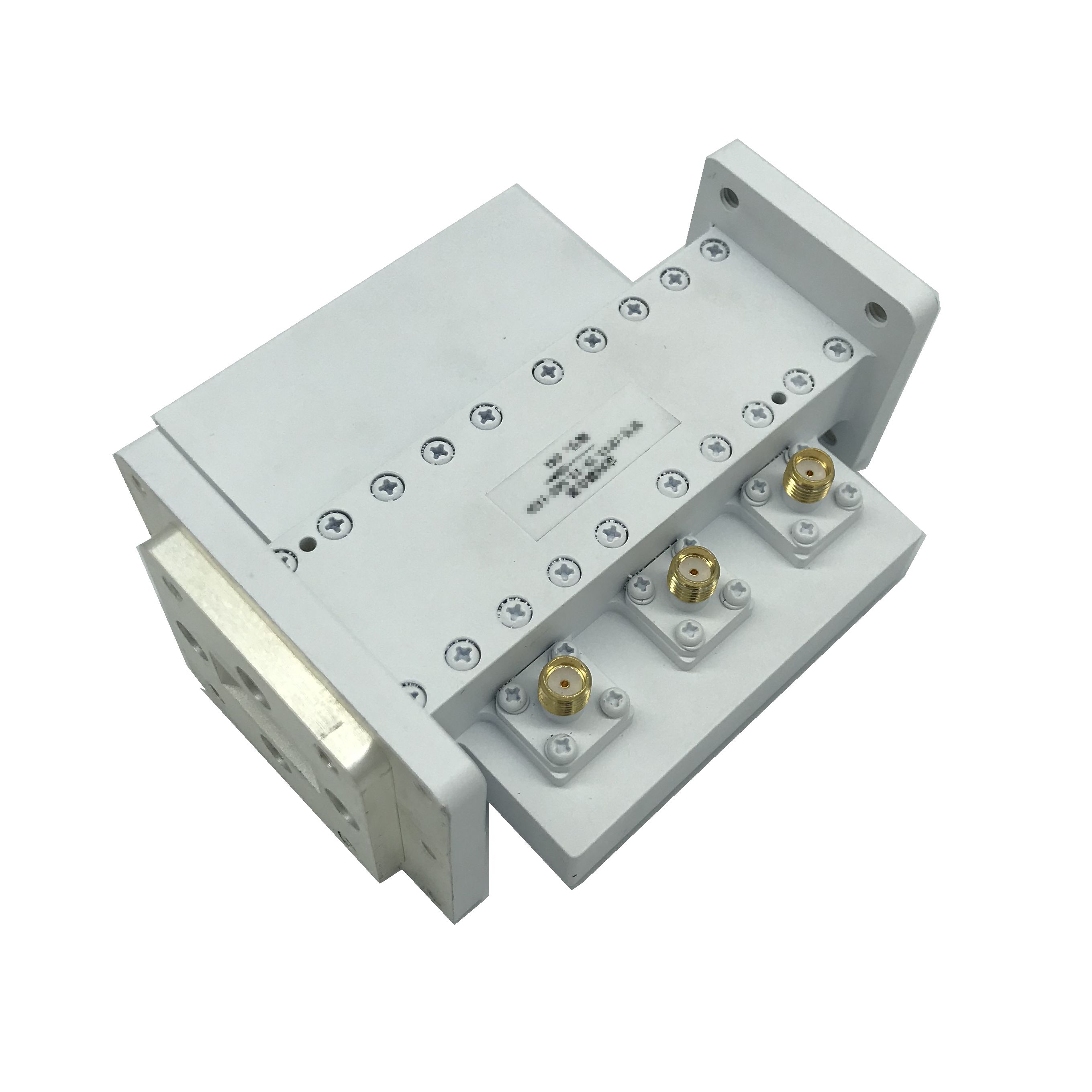

13.75 - 14.5GHz Microwave Components Cavity Waveguide RF Directional Coupler

Quick Details

Packaging & Delivery

the device is pacakged in carton box with poly foam.

Product Description

Product Name	waveguide directional coupler
Part No.	CP13.75-14.5GS
Function	Coupling microwave
Frequency	13.75-14.5GHz
Coupling	40dB
Directivity	≥15dB
VSWR (main line)	≤1.1
VSWR (sub line)	≤1.25
Average Power	250W
Material	Aluminum

Customized Parameter: Avaliable Customized Dimension: Avaliable
OEM: Avaliable
ODM: Avaliable


Product Tags:

high frequency directional coupler
